LED DRIVER CV AC/DC 12V 1.67A

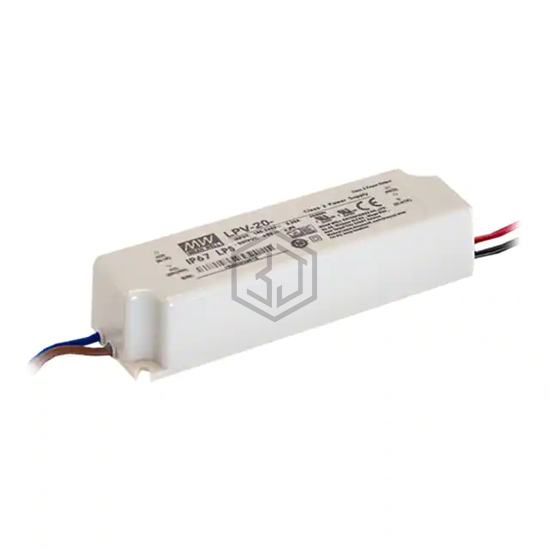

LPV-20-12 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 12V 1.67A. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 12V, current - output (max) 1.67A, size / dimension 4.65" L x 1.38" W x 1.02" H (118.0mm x 35.0mm x 26.0mm).
In Stock: 2,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 81% |
| Termination Style | Wire Leads |
| Size / Dimension | 4.65" L x 1.38" W x 1.02" H (118.0mm x 35.0mm x 26.0mm) |
| Approval Agency | CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for LPV-20-12 and get a quote within 24 hours.
