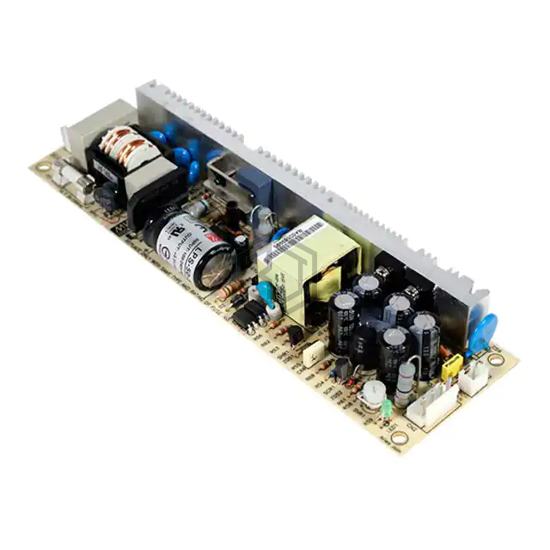

AC/DC CONVERTER 12V 50W
LPS-50-12 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 12V 50W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm).
In Stock: 87
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 82% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for LPS-50-12 and get a quote within 24 hours.
