LED DRIVER CV AC/DC 36V 500MA

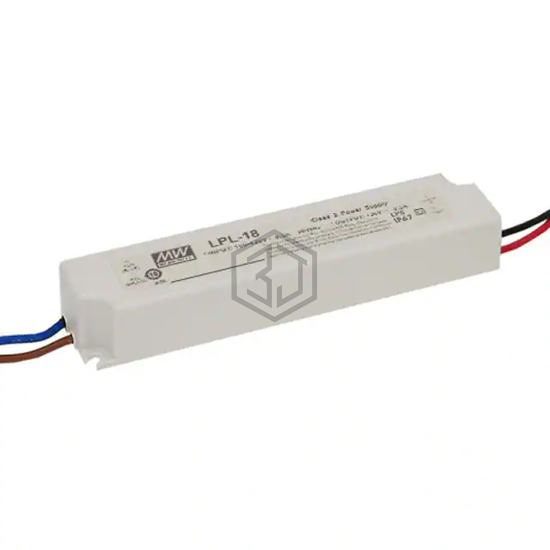

LPL-18-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 36V 500MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 36V, current - output (max) 500mA, size / dimension 5.51" L x 1.18" W x 0.87" H (140.0mm x 30.0mm x 22.0mm).
In Stock: 7,123
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 132VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 500mA |
| Power (Watts) | 18 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.51" L x 1.18" W x 0.87" H (140.0mm x 30.0mm x 22.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for LPL-18-36 and get a quote within 24 hours.
