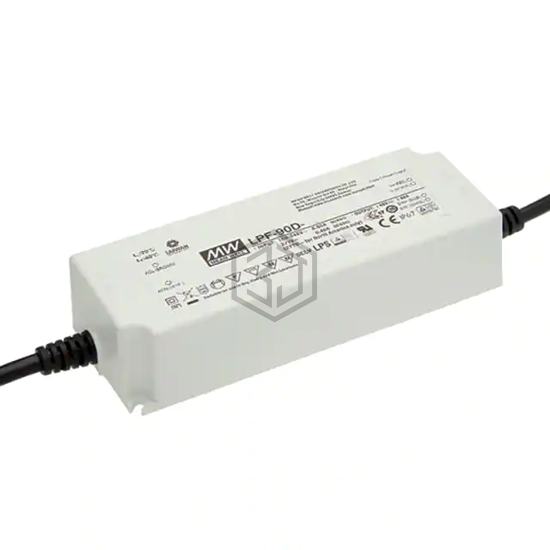

LED DRVR CC AC/DC 21.6-36V 2.5A
LPF-90D-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 21.6-36V 2.5A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 21.6 ~ 36V, current - output (max) 2.5A, size / dimension 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm).
In Stock: 3,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 21.6 ~ 36V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 90 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 90.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) |
| Approval Agency | CB, CCC, CE, cURus, PSE, TUV |
| Standard Number | - |
