LED DVR CCCV ACDC 28.8-48V 1.88A

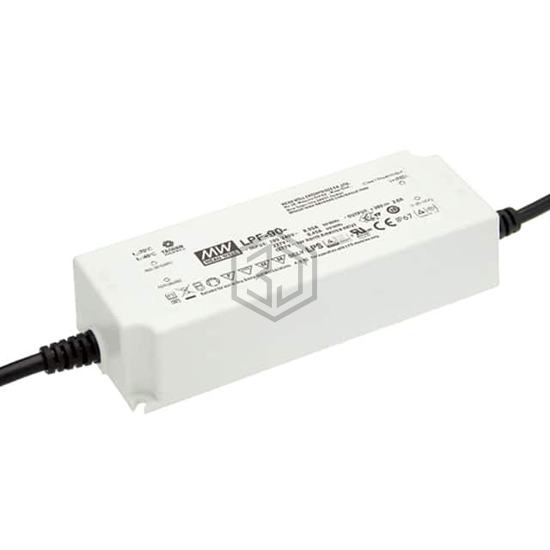

LPF-90-48 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CCCV ACDC 28.8-48V 1.88A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 28.8 ~ 48V, current - output (max) 1.88A, size / dimension 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm).
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 28.8 ~ 48V |
| Current - Output (Max) | 1.88A |
| Power (Watts) | 90 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) |
| Approval Agency | CB, CCC, CE, PSE, TUV, UR |
| Standard Number | - |
