LED DVR CC/CV ACDC 14.4-24V 2.5A

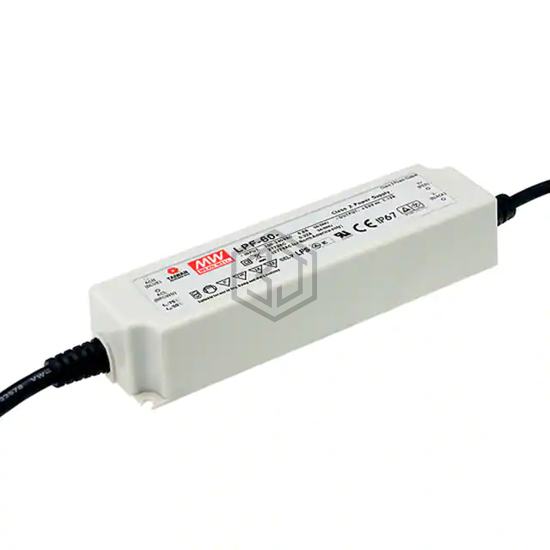

LPF-60-24 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV ACDC 14.4-24V 2.5A. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 14.4 ~ 24V, current - output (max) 2.5A, size / dimension 6.40" L x 1.69" W x 1.26" H (162.5mm x 43.0mm x 32.0mm).
In Stock: 116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 14.4 ~ 24V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 89% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.40" L x 1.69" W x 1.26" H (162.5mm x 43.0mm x 32.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE, TUV |
| Standard Number | - |
Submit your RFQ for LPF-60-24 and get a quote within 24 hours.
