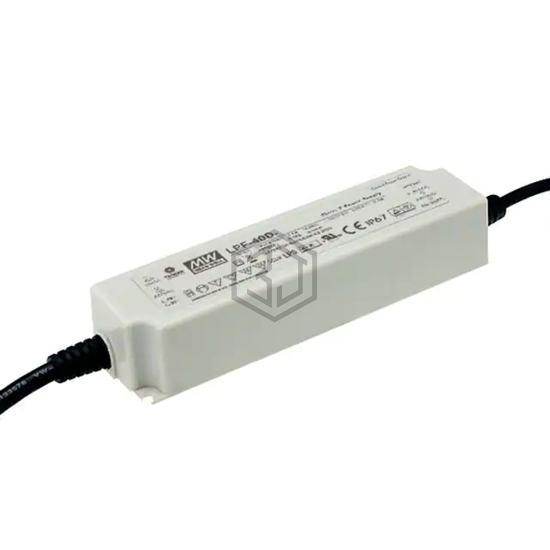

LED DRVR CC AC/DC 28.8-48V 840MA
LPF-40D-48 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 28.8-48V 840MA. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 28.8 ~ 48V, current - output (max) 840mA, size / dimension 6.40" L x 1.69" W x 1.26" H (162.5mm x 43.0mm x 32.0mm).
In Stock: 3,958
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 28.8 ~ 48V |
| Current - Output (Max) | 840mA |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 89% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.40" L x 1.69" W x 1.26" H (162.5mm x 43.0mm x 32.0mm) |
| Approval Agency | CB, CCC, CE, PSE, TUV, UR |
| Standard Number | - |
Submit your RFQ for LPF-40D-48 and get a quote within 24 hours.
