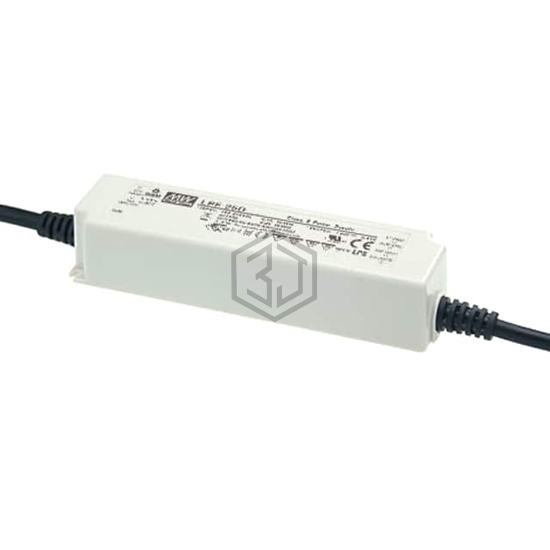

LED DRVR CC AC/DC 26.4-48V 530MA
LPF-25D-48 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 26.4-48V 530MA. Key specifications: operating temperature -35°C ~ 70°C, voltage - output 26.4 ~ 48V, current - output (max) 530mA, size / dimension 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm).
In Stock: 3,666
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 26.4 ~ 48V |
| Current - Output (Max) | 530mA |
| Power (Watts) | 25 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 70°C |
| Efficiency | 86% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE |
| Standard Number | - |
