LED DVR CC/CV AC/DC 6.6-12V 2.1A

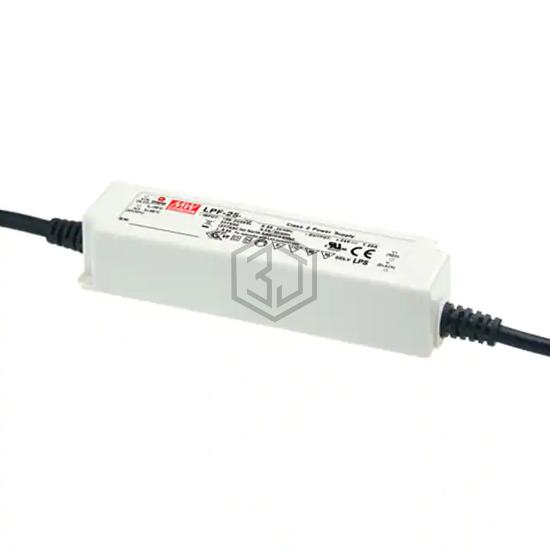

LPF-25-12 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV AC/DC 6.6-12V 2.1A. Key specifications: operating temperature -35°C ~ 70°C, voltage - output 6.6 ~ 12V, current - output (max) 2.1A, size / dimension 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm).
In Stock: 304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 6.6 ~ 12V |
| Current - Output (Max) | 2.1A |
| Power (Watts) | 25 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 70°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE |
| Standard Number | - |
Submit your RFQ for LPF-25-12 and get a quote within 24 hours.
