I/P:90-295VAC O/P:+36V 0.7A

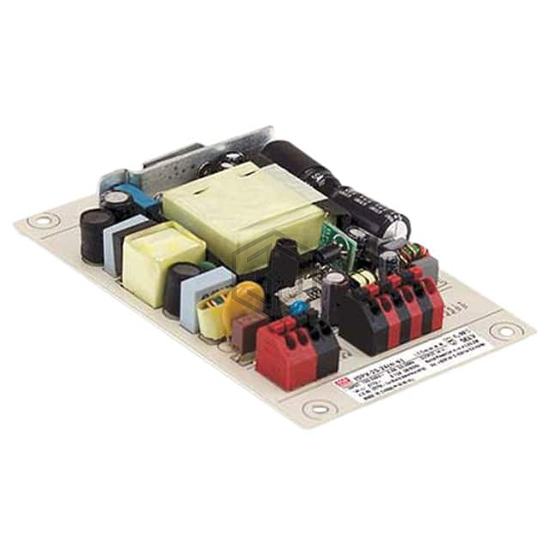

IDPV-25A-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. I/P:90-295VAC O/P:+36V 0.7A. Key specifications: operating temperature -20°C ~ 45°C, voltage - output 36V, current - output (max) 700mA, size / dimension 4.51" L x 2.85" W x 0.79" H (114.5mm x 72.5mm x 20.0mm).
In Stock: 1,762
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 25 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 45°C |
| Efficiency | 82% |
| Termination Style | Terminal Block |
| Size / Dimension | 4.51" L x 2.85" W x 0.79" H (114.5mm x 72.5mm x 20.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for IDPV-25A-36 and get a quote within 24 hours.
