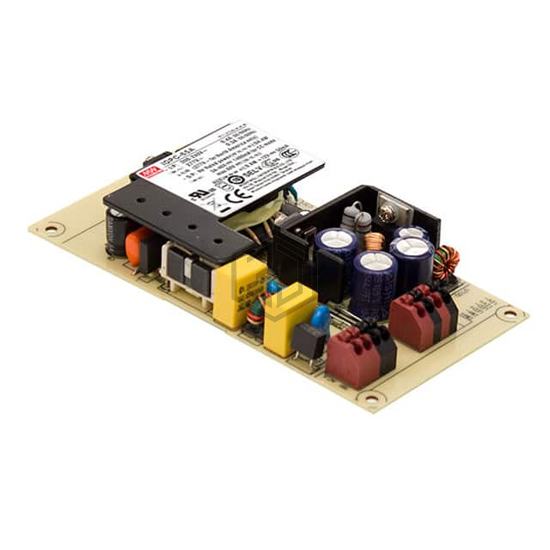

LED DRIVER CC AC/DC 34-46V 1.4A
IDPC-65A-1400 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 34-46V 1.4A. Key specifications: operating temperature -20°C ~ 40°C, voltage - output 34 ~ 46V, current - output (max) 1.4A, size / dimension 5.12" L x 2.66" W x 0.81" H (130.0mm x 67.5mm x 20.5mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 34 ~ 46V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 64 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 40°C |
| Efficiency | 86% |
| Termination Style | Terminal Block |
| Size / Dimension | 5.12" L x 2.66" W x 0.81" H (130.0mm x 67.5mm x 20.5mm) |
| Approval Agency | CB, CE, CCC, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for IDPC-65A-1400 and get a quote within 24 hours.
