LED DRVR CC AC/DC 54-90V 500MA

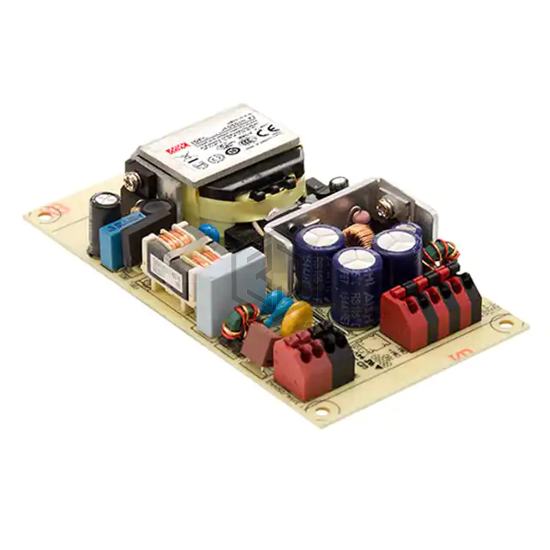

IDPC-45A-500 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 54-90V 500MA. Key specifications: operating temperature -20°C ~ 40°C, voltage - output 54 ~ 90V, current - output (max) 500mA, size / dimension 4.72" L x 2.62" W x 0.98" H (120.0mm x 66.5mm x 25.0mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 54 ~ 90V |
| Current - Output (Max) | 500mA |
| Power (Watts) | 45 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 40°C |
| Efficiency | 85% |
| Termination Style | Terminal Block |
| Size / Dimension | 4.72" L x 2.62" W x 0.98" H (120.0mm x 66.5mm x 25.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for IDPC-45A-500 and get a quote within 24 hours.
