LED DRVR CC AC/DC 38-64V 700MA

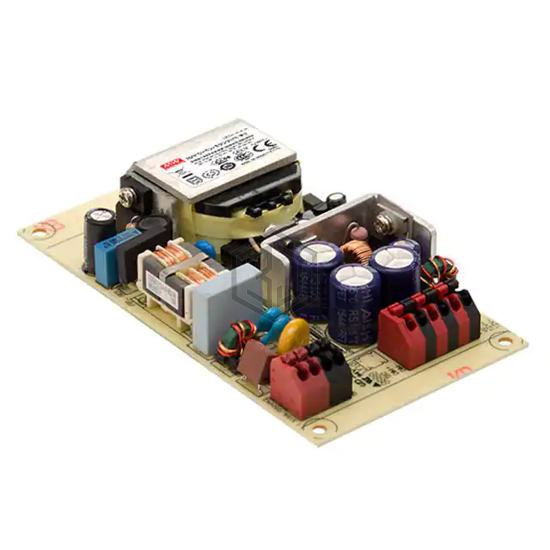

IDPC-45-700 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 38-64V 700MA. Key specifications: operating temperature -20°C ~ 40°C, voltage - output 38 ~ 64V, current - output (max) 700mA, size / dimension 4.72" L x 2.62" W x 0.98" H (120.0mm x 66.5mm x 25.0mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 38 ~ 64V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 45 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 40°C |
| Efficiency | 85% |
| Termination Style | Terminal Block |
| Size / Dimension | 4.72" L x 2.62" W x 0.98" H (120.0mm x 66.5mm x 25.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
