LED DRIVER CV AC/DC 60V 1.08A

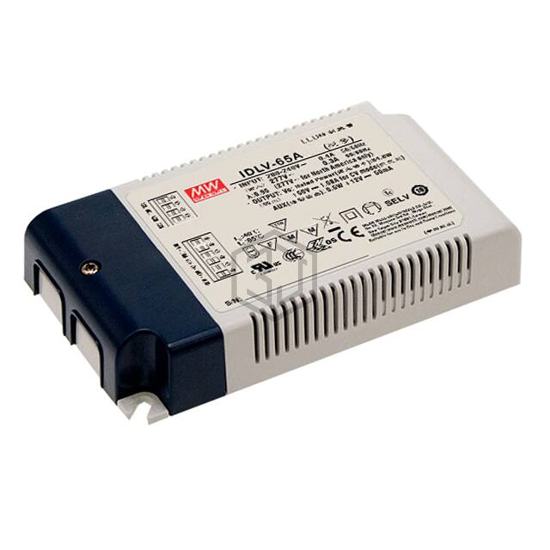

IDLV-65A-60 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 60V 1.08A. Key specifications: operating temperature -20°C ~ 85°C, voltage - output 60V, current - output (max) 1.08A, size / dimension 5.12" L x 2.95" W x 0.98" H (130.0mm x 75.0mm x 25.0mm).
In Stock: 2,119
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 60V |
| Current - Output (Max) | 1.08A |
| Power (Watts) | 65 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Efficiency | 90% |
| Termination Style | Terminal Block |
| Size / Dimension | 5.12" L x 2.95" W x 0.98" H (130.0mm x 75.0mm x 25.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for IDLV-65A-60 and get a quote within 24 hours.
