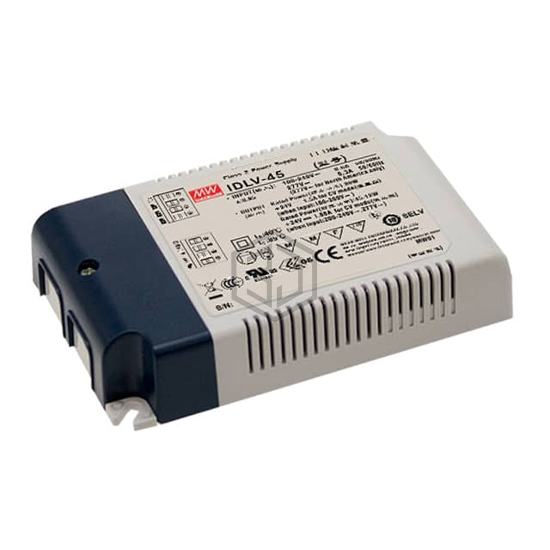

LED DRIVER CV AC/DC 12V 3A
IDLV-45-12 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 12V 3A. Key specifications: operating temperature -20°C ~ 85°C, voltage - output 12V, current - output (max) 3A, size / dimension 4.72" L x 2.95" W x 0.98" H (120.0mm x 75.0mm x 25.0mm).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 3A |
| Power (Watts) | 36 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Efficiency | 84% |
| Termination Style | Terminal Block |
| Size / Dimension | 4.72" L x 2.95" W x 0.98" H (120.0mm x 75.0mm x 25.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for IDLV-45-12 and get a quote within 24 hours.
