LED POWER SUPPLIES 25.2W 24V 1.0

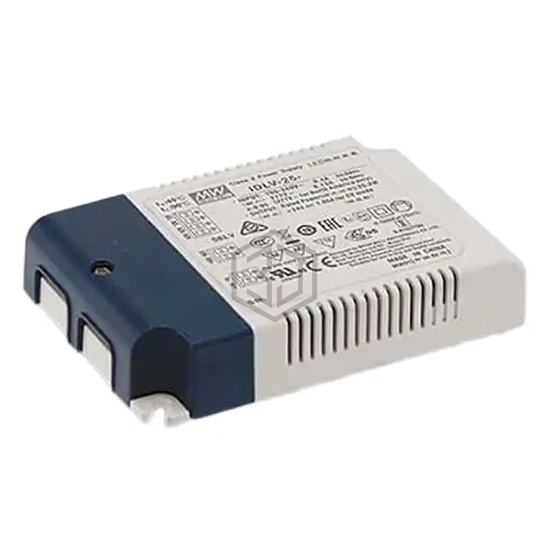

IDLV-25-24 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED POWER SUPPLIES 25.2W 24V 1.0. Key specifications: operating temperature -20°C ~ 90°C, voltage - output 24V, current - output (max) 1.05A, size / dimension 4.33" L x 2.95" W x 0.87" H (110.0mm x 75.0mm x 22.0mm).
In Stock: 1,248
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 25 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | PWM |
| Features | OCP, SCP |
| Ratings | - |
| Operating Temperature | -20°C ~ 90°C |
| Efficiency | 81% |
| Termination Style | Terminal Block |
| Size / Dimension | 4.33" L x 2.95" W x 0.87" H (110.0mm x 75.0mm x 22.0mm) |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, RCM |
| Standard Number | - |
