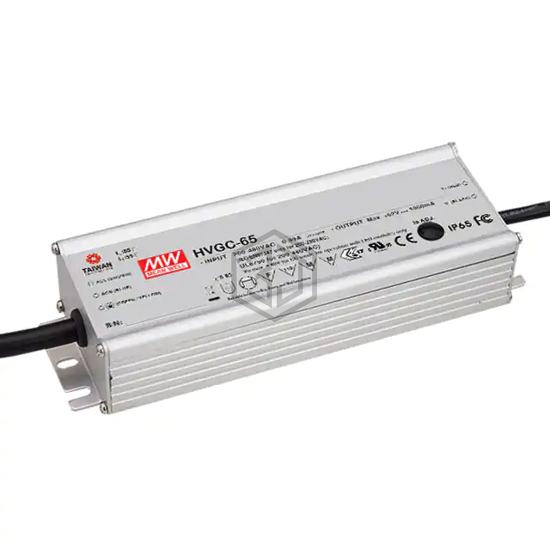

LED DRIVER CC AC/DC 9-93V 700MA
HVGC-65-700A is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 9-93V 700MA. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 9 ~ 93V, current - output (max) 700mA, size / dimension 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm).
In Stock: 2,668
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 9 ~ 93V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 65 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OTP, OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 90.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm) |
| Approval Agency | CB, CE, cURus, ENEC |
| Standard Number | - |
