LED DVR CC/CV AC/DC 43-53V 1.36A

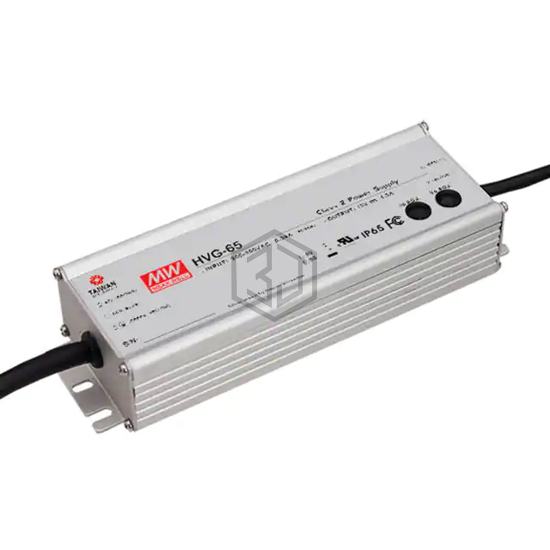

HVG-65-48A is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV AC/DC 43-53V 1.36A. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 43 ~ 53V, current - output (max) 1.36A, size / dimension 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm).
In Stock: 8,012
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 43 ~ 53V |
| Current - Output (Max) | 1.36A |
| Power (Watts) | 65 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 90% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.50" L x 2.42" W x 1.45" H (165.0mm x 61.5mm x 36.8mm) |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for HVG-65-48A and get a quote within 24 hours.
