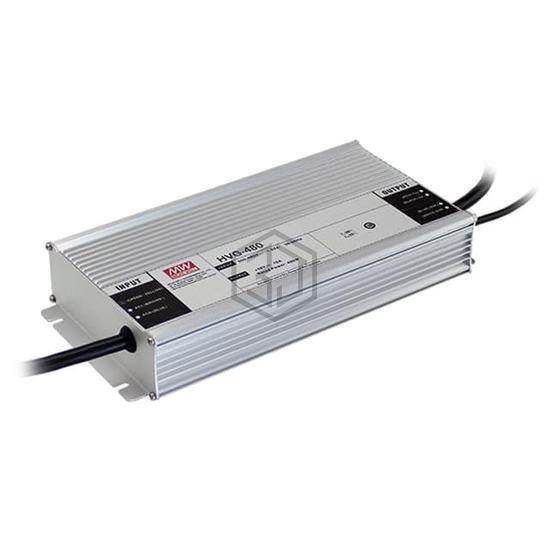

LED DRVR CC/CV AC/DC 24-48V 10A
HVG-480-48B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC/CV AC/DC 24-48V 10A. Key specifications: operating temperature -40°C ~ 85°C, voltage - output 24 ~ 48V, current - output (max) 10A, size / dimension 9.26" L x 4.92" W x 1.72" H (235.2mm x 125.0mm x 43.8mm).
In Stock: 9,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 24 ~ 48V |
| Current - Output (Max) | 10A |
| Power (Watts) | 480 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Termination Style | Wire Leads |
| Size / Dimension | 9.26" L x 4.92" W x 1.72" H (235.2mm x 125.0mm x 43.8mm) |
| Approval Agency | cURus |
| Standard Number | - |
