LED DVR CC/CV AC/DC 18-36V 2.65A

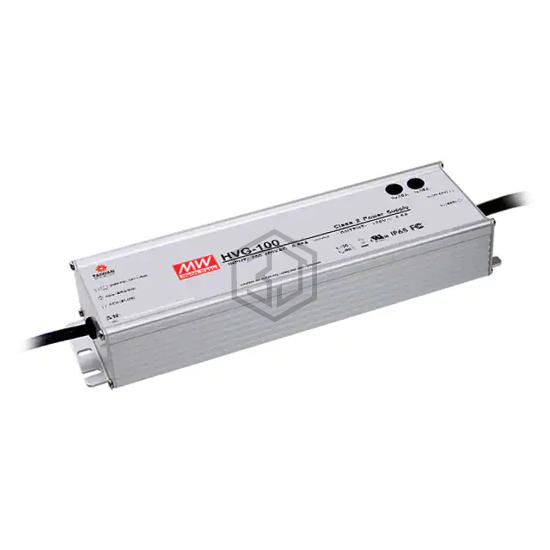

HVG-100-36B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV AC/DC 18-36V 2.65A. Key specifications: operating temperature -40°C ~ 90°C, voltage - output 18 ~ 36V, current - output (max) 2.65A, size / dimension 8.35" L x 2.68" W x 1.52" H (212.0mm x 68.0mm x 38.5mm).
In Stock: 1,085
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 2.65A |
| Power (Watts) | 95 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 90°C |
| Efficiency | 90.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.35" L x 2.68" W x 1.52" H (212.0mm x 68.0mm x 38.5mm) |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for HVG-100-36B and get a quote within 24 hours.
