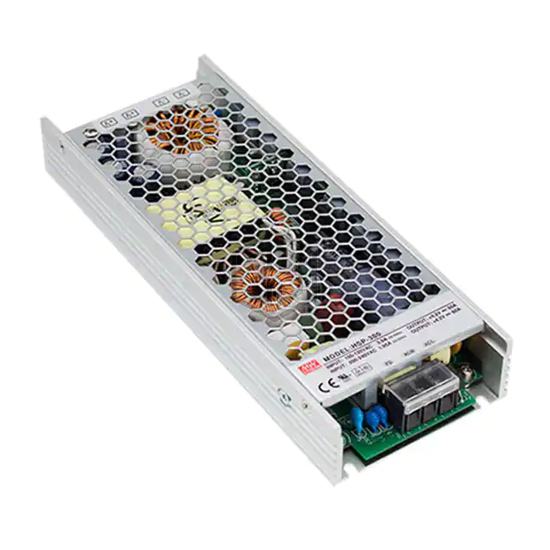

AC/DC CONVERTER 4.2V 252W
HSP-300-4.2 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 4.2V 252W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 135 VAC, 180 ~ 264 VAC, size / dimension 8.27" L x 3.19" W x 1.22" H (210.0mm x 81.0mm x 31.0mm).
In Stock: 62
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 135 VAC, 180 ~ 264 VAC |
| Voltage - Output 1 | 4.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 60 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 252W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 85% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.27" L x 3.19" W x 1.22" H (210.0mm x 81.0mm x 31.0mm) |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for HSP-300-4.2 and get a quote within 24 hours.
