LED DRIVER CC AC/DC 12-20V 4A

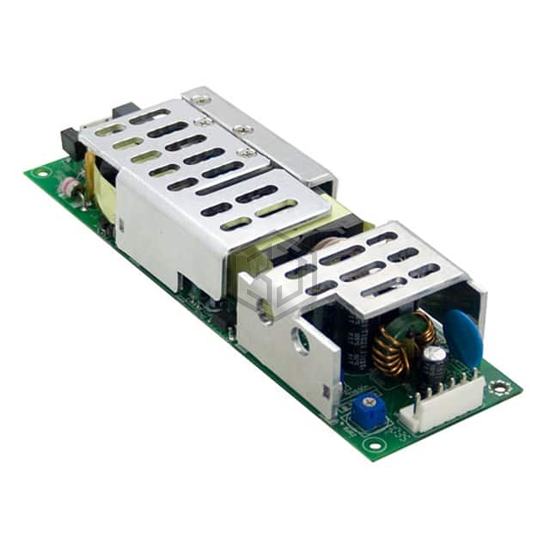

HLP-80H-20 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 12-20V 4A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 12 ~ 20V, current - output (max) 4A, size / dimension 6.57" L x 2.09" W x 1.16" H (167.0mm x 53.0mm x 29.5mm).
In Stock: 5,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 12 ~ 20V |
| Current - Output (Max) | 4A |
| Power (Watts) | 80 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | - |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 89.5% |
| Termination Style | Rectangular, 6 Position |
| Size / Dimension | 6.57" L x 2.09" W x 1.16" H (167.0mm x 53.0mm x 29.5mm) |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for HLP-80H-20 and get a quote within 24 hours.
