LED DRIVER CC AC/DC 12-20V 3A

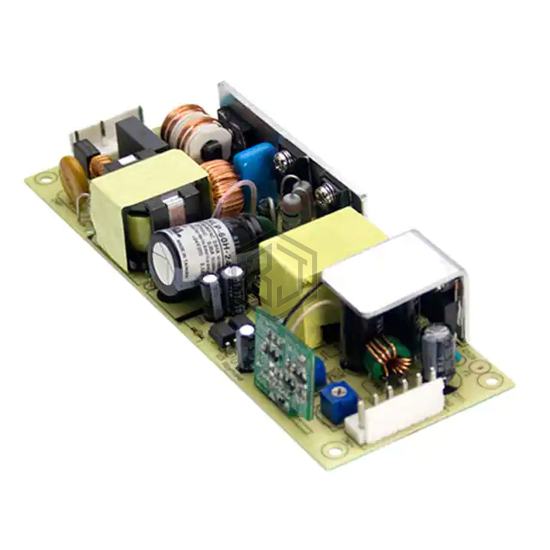

HLP-60H-20 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 12-20V 3A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 12 ~ 20V, current - output (max) 3A, size / dimension 5.80" L x 2.09" W x 1.06" H (147.2mm x 53.0mm x 27.0mm).
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 12 ~ 20V |
| Current - Output (Max) | 3A |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | - |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 89% |
| Termination Style | Rectangular, 6 Position |
| Size / Dimension | 5.80" L x 2.09" W x 1.06" H (147.2mm x 53.0mm x 27.0mm) |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for HLP-60H-20 and get a quote within 24 hours.
