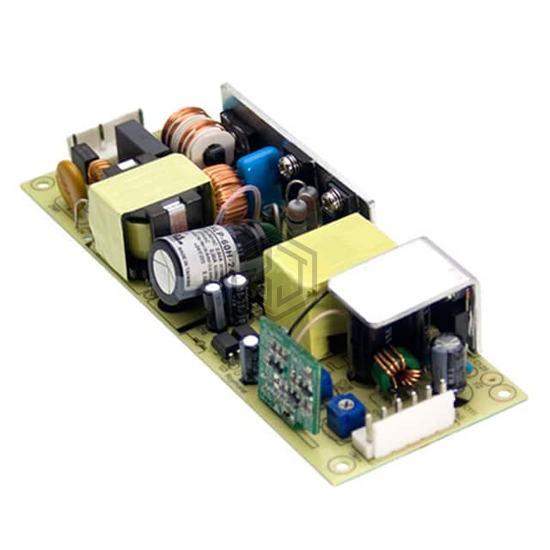

LED DRVR CC AC/DC 32.4-54V 750MA
HLP-40H-54 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 32.4-54V 750MA. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 32.4 ~ 54V, current - output (max) 750mA, size / dimension 5.79" L x 2.09" W x 1.06" H (147.0mm x 53.0mm x 27.0mm).
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 32.4 ~ 54V |
| Current - Output (Max) | 750mA |
| Power (Watts) | 41 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | - |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 89.5% |
| Termination Style | Rectangular, 6 Position |
| Size / Dimension | 5.79" L x 2.09" W x 1.06" H (147.0mm x 53.0mm x 27.0mm) |
| Approval Agency | CB, CCC, CE, TUV, UR |
| Standard Number | - |
Submit your RFQ for HLP-40H-54 and get a quote within 24 hours.
