LED DRVR CC AC/DC 21.6-36V 1.12A

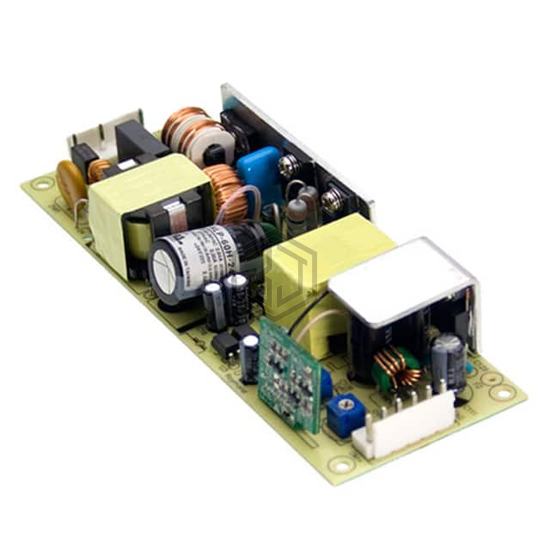

HLP-40H-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 21.6-36V 1.12A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 21.6 ~ 36V, current - output (max) 1.12A, size / dimension 5.79" L x 2.09" W x 1.06" H (147.0mm x 53.0mm x 27.0mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 21.6 ~ 36V |
| Current - Output (Max) | 1.12A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | - |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 89% |
| Termination Style | Rectangular, 6 Position |
| Size / Dimension | 5.79" L x 2.09" W x 1.06" H (147.0mm x 53.0mm x 27.0mm) |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Standard Number | - |
