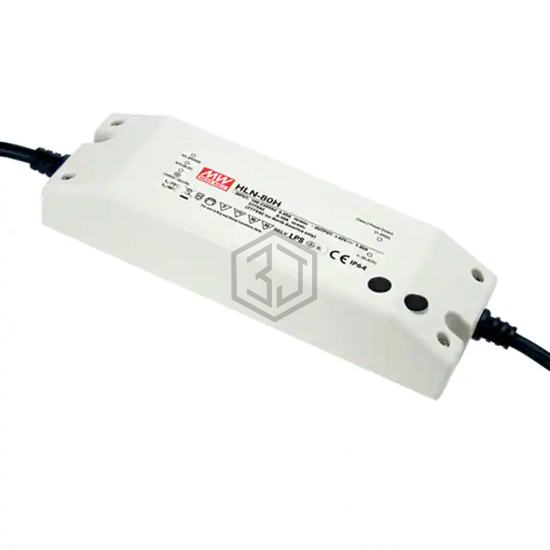

LED DRVR CC/CV AC/DC 30V 2.7A
HLN-80H-30B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC/CV AC/DC 30V 2.7A. Key specifications: operating temperature -40°C ~ 50°C, voltage - output 30V, current - output (max) 2.7A, size / dimension 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm).
In Stock: 9,473
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 30V |
| Current - Output (Max) | 2.7A |
| Power (Watts) | 81 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP64 |
| Operating Temperature | -40°C ~ 50°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm) |
| Approval Agency | CB, CE, PSE, TUV |
| Standard Number | - |
