LED DRIVER CC/CV AC/DC 9-15V 4A

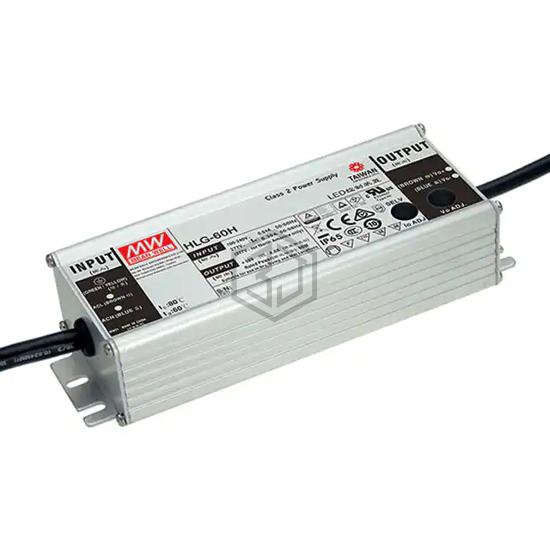

HLG-60H-15B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC/CV AC/DC 9-15V 4A. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 9 ~ 15V, current - output (max) 4A, size / dimension 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 9 ~ 15V |
| Current - Output (Max) | 4A |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 87.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) |
| Approval Agency | CB, CCC, CE, cURus, PSE, RCM, TUV, UR |
| Standard Number | - |
