LED DVR CC/CV AC/DC 22-27V 1.67A

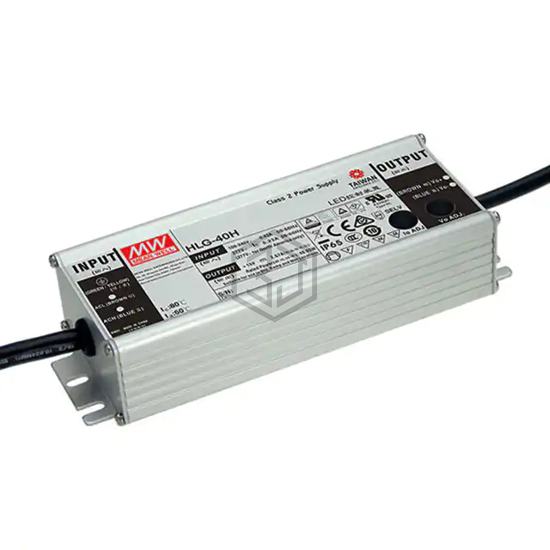

HLG-40H-24A is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV AC/DC 22-27V 1.67A. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 22 ~ 27V, current - output (max) 1.67A, size / dimension 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm).
In Stock: 9,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 22 ~ 27V |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 88% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) |
| Approval Agency | CB, CCC, CE, cURus, PSE, RCM, TUV |
| Standard Number | - |
Submit your RFQ for HLG-40H-24A and get a quote within 24 hours.
