LED DRVR CC/CV AC/DC 18-36V 3.4A

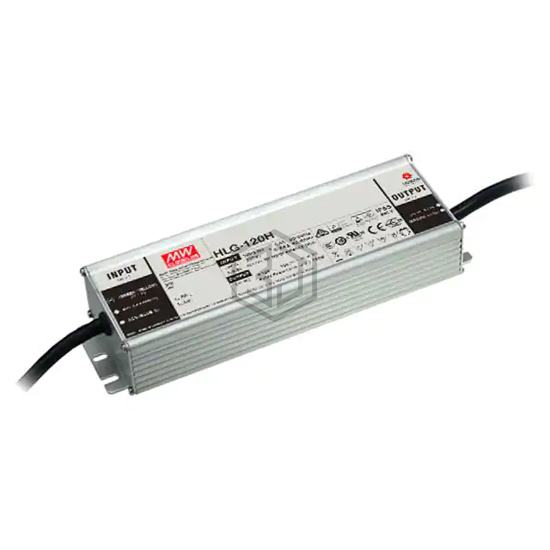

HLG-120H-36B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC/CV AC/DC 18-36V 3.4A. Key specifications: operating temperature -40°C ~ 80°C, voltage - output 18 ~ 36V, current - output (max) 3.4A, size / dimension 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm).
In Stock: 123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 3.4A |
| Power (Watts) | 122 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 93% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV |
| Standard Number | - |
Submit your RFQ for HLG-120H-36B and get a quote within 24 hours.
