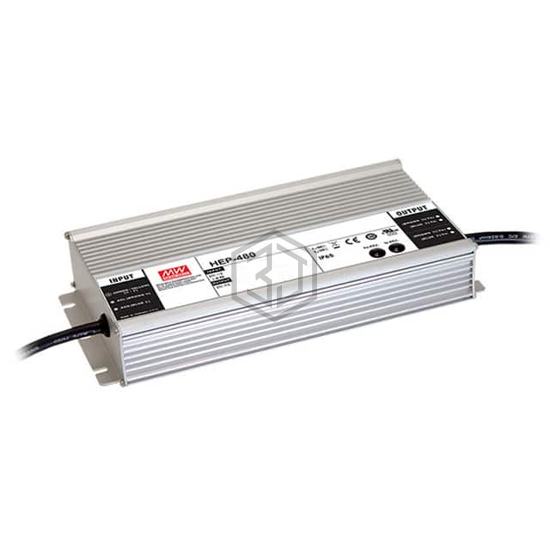

AC/DC CONVERTER 48V 480W
HEP-480-48A is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 480W. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 65°C (With Derating), voltage - input 90 ~ 305 VAC, 127 ~ 431 VDC, size / dimension 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm).
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 305 VAC, 127 ~ 431 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 480W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3.75 kV |
| Efficiency | 94.5% |
| Operating Temperature | -55°C ~ 65°C (With Derating) |
| Features | Adjustable Output, IP65, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
Submit your RFQ for HEP-480-48A and get a quote within 24 hours.
