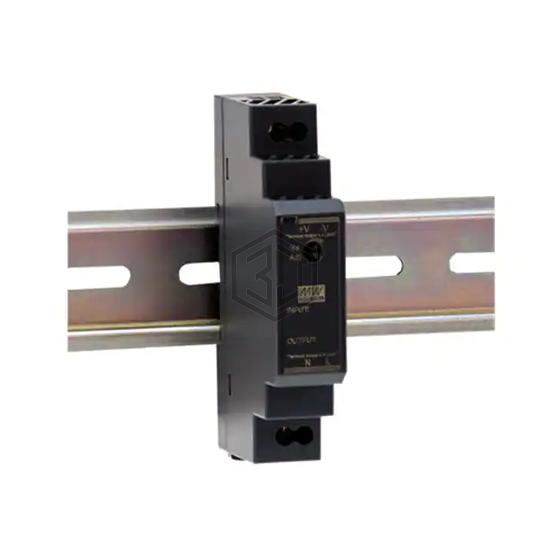

AC/DC CONVERTER 48V 15W
HDR-15-48 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 15W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 320mA, size / dimension 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm), number of outputs 1.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 320mA |
| Power (Watts) | 15W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) |
| Approval Agency | CB, CE, cULus, cURus, TUV |
| Standard Number | - |
Submit your RFQ for HDR-15-48 and get a quote within 24 hours.
