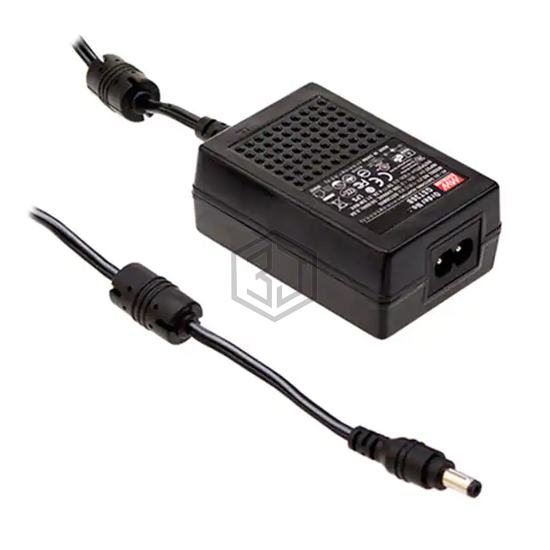

AC/DC DESKTOP ADAPTER 24V 36W
GST36B24-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC DESKTOP ADAPTER 24V 36W. Key specifications: operating temperature -30°C ~ 70°C, voltage - input 85 ~ 264 VAC, current - output (max) 1.5A, size / dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm).
In Stock: 414
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.5A |
| Power (Watts) | 36 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -30°C ~ 70°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 39.4" (1.00m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) |
| Approval Agency | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
| Standard Number | - |
