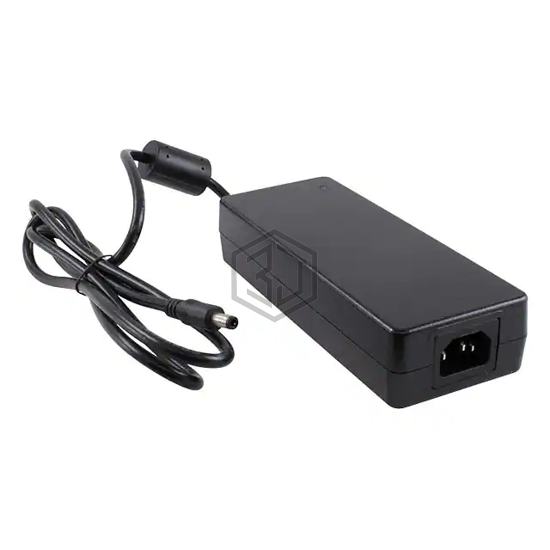

AC/DC DESKTOP ADAPTER 24V 120W
GST120A24-P1M is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC DESKTOP ADAPTER 24V 120W. Key specifications: operating temperature -30°C ~ 70°C, voltage - input 85 ~ 264 VAC, current - output (max) 5A, size / dimension 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm).
In Stock: 1,147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 5A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 150mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -30°C ~ 70°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) |
| Approval Agency | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
| Standard Number | - |
Submit your RFQ for GST120A24-P1M and get a quote within 24 hours.
