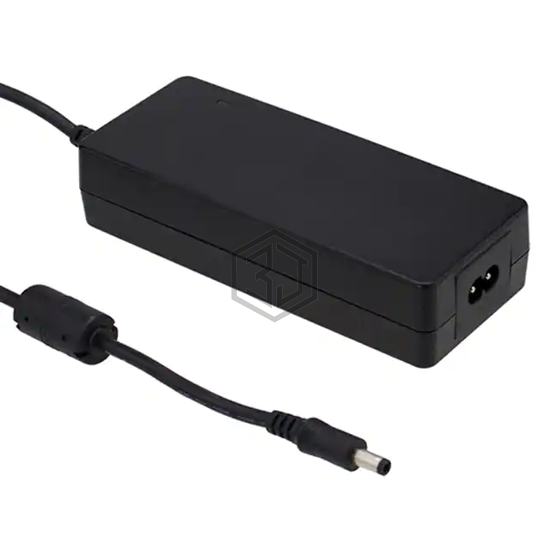

AC/DC DESKTOP ADAPTER 24V 90W
GSM90B24-P1M is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC DESKTOP ADAPTER 24V 90W. Key specifications: operating temperature -30°C ~ 70°C, voltage - input 80 ~ 264 VAC, current - output (max) 3.75A, size / dimension 5.71" L x 2.36" W x 1.26" H (145.0mm x 60.0mm x 32.0mm).
In Stock: 131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 3.75A |
| Power (Watts) | 90 W |
| No Load Power Consumption | 150mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level VI |
| Operating Temperature | -30°C ~ 70°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 5.71" L x 2.36" W x 1.26" H (145.0mm x 60.0mm x 32.0mm) |
| Approval Agency | CB, CE, cRUus, TUV |
| Standard Number | - |
Submit your RFQ for GSM90B24-P1M and get a quote within 24 hours.
