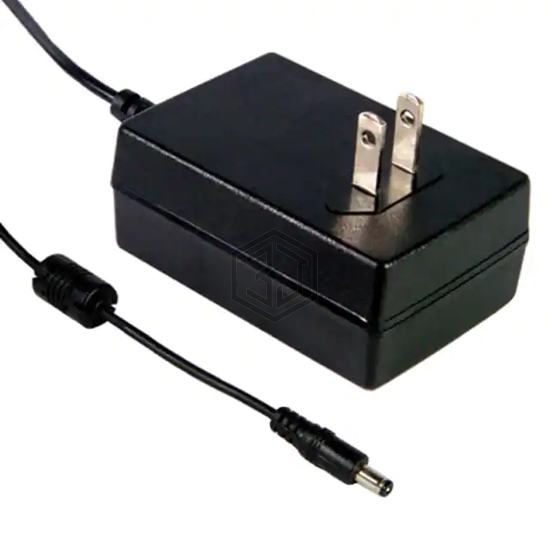

AC/DC WALL MNT ADAPTER 7.5V 32W
GSM36U07-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MNT ADAPTER 7.5V 32W. Key specifications: operating temperature -25°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 4.32A, size / dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm).
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 7.5V |
| Current - Output (Max) | 4.32A |
| Power (Watts) | 32 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level V |
| Operating Temperature | -25°C ~ 60°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) |
| Approval Agency | CB, cRUus, TUV |
| Standard Number | - |
Submit your RFQ for GSM36U07-P1J and get a quote within 24 hours.
