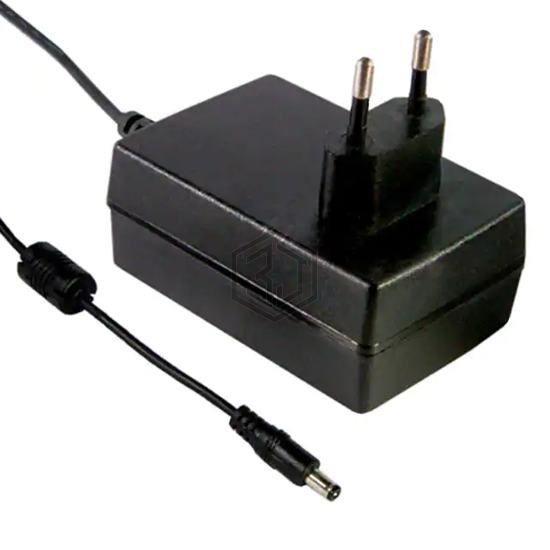

AC/DC WALL MOUNT ADAPTER 15V 36W
GSM36E15-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MOUNT ADAPTER 15V 36W. Key specifications: operating temperature -25°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 2.4A, size / dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 15V |
| Current - Output (Max) | 2.4A |
| Power (Watts) | 36 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level VI |
| Operating Temperature | -25°C ~ 60°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) |
| Approval Agency | CB, CE, TUV |
| Standard Number | - |
Submit your RFQ for GSM36E15-P1J and get a quote within 24 hours.
