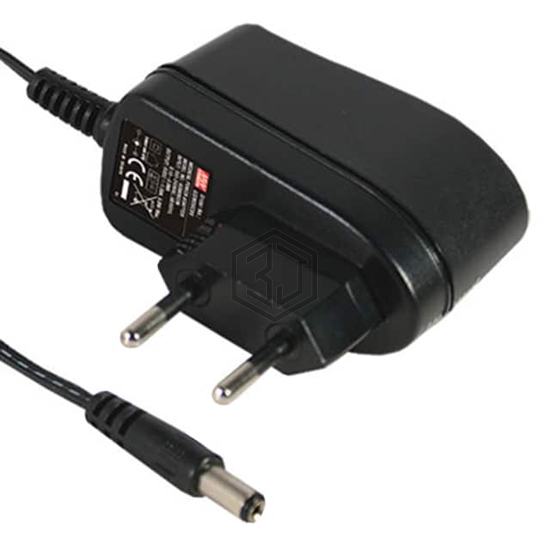

AC/DC WALL MOUNT ADAPTER 9V 6W
GSM06E09-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MOUNT ADAPTER 9V 6W. Key specifications: operating temperature 0°C ~ 50°C, voltage - input 85 ~ 264 VAC, current - output (max) 660mA, size / dimension 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm).
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 660mA |
| Power (Watts) | 6 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level V |
| Operating Temperature | 0°C ~ 50°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 48" (1.22m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) |
| Approval Agency | CE, TUV |
| Standard Number | - |
Submit your RFQ for GSM06E09-P1J and get a quote within 24 hours.
