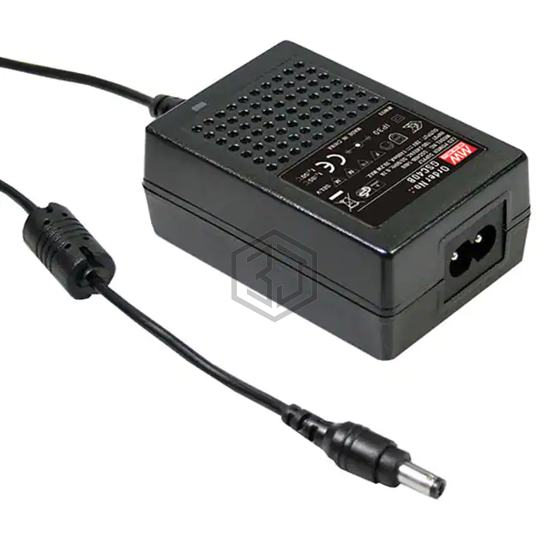

LED DRVR CC AC/DC 29-58V 700MA
GSC40B-700 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 29-58V 700MA. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 29 ~ 58V, current - output (max) 700mA, size / dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm).
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 29 ~ 58V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | SCP |
| Ratings | IP40 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 88.5% |
| Termination Style | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm |
| Size / Dimension | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) |
| Approval Agency | CB, CCC, CE, ENEC, KEMA-KEUR |
| Standard Number | - |
Submit your RFQ for GSC40B-700 and get a quote within 24 hours.
