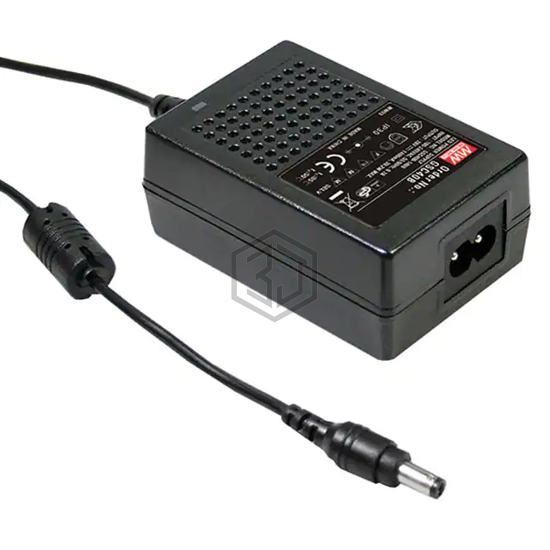

LED DRIVER CC AC/DC 14-28V 1.4A
GSC40B-1400 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 14-28V 1.4A. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 14 ~ 28V, current - output (max) 1.4A, size / dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm).
In Stock: 104
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 14 ~ 28V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 39 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | SCP |
| Ratings | IP40 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 87% |
| Termination Style | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm |
| Size / Dimension | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) |
| Approval Agency | CB, CCC, CE, ENEC, KEMA-KEUR |
| Standard Number | - |
