AC/DC DESKTOP ADPT 5V +/-15V 29W

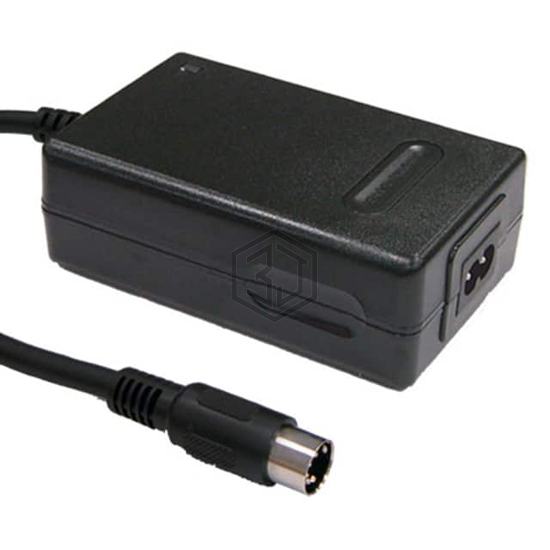

GP25B14E-R1B is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC DESKTOP ADPT 5V +/-15V 29W. Key specifications: operating temperature -20°C ~ 70°C, voltage - input 90 ~ 264 VAC, current - output (max) 2.5A, 800mA, 300mA, size / dimension 4.23" L x 2.64" W x 1.42" H (107.5mm x 67.0mm x 36.0mm).
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V, 15V, -15V |
| Current - Output (Max) | 2.5A, 800mA, 300mA |
| Power (Watts) | 29 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -20°C ~ 70°C |
| Output Connector | DIN, 5 Pin |
| Cord Length | 60.2" (1.53m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 4.23" L x 2.64" W x 1.42" H (107.5mm x 67.0mm x 36.0mm) |
| Approval Agency | CBE, CE, cULus, GS |
| Standard Number | - |
Submit your RFQ for GP25B14E-R1B and get a quote within 24 hours.
