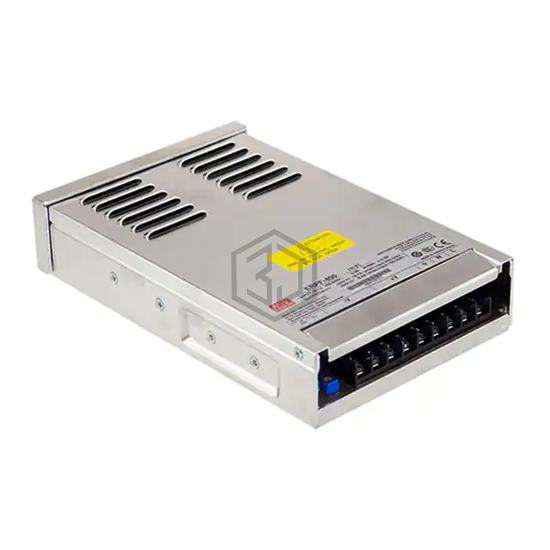

AC/DC CONVERTER 48V 398W
ERPF-400-48 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 398W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 8.68" L x 5.12" W x 1.89" H (220.4mm x 130.0mm x 48.0mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 398W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 91% |
| Operating Temperature | -30°C ~ 60°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.68" L x 5.12" W x 1.89" H (220.4mm x 130.0mm x 48.0mm) |
| Approval Agency | CCC, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for ERPF-400-48 and get a quote within 24 hours.
