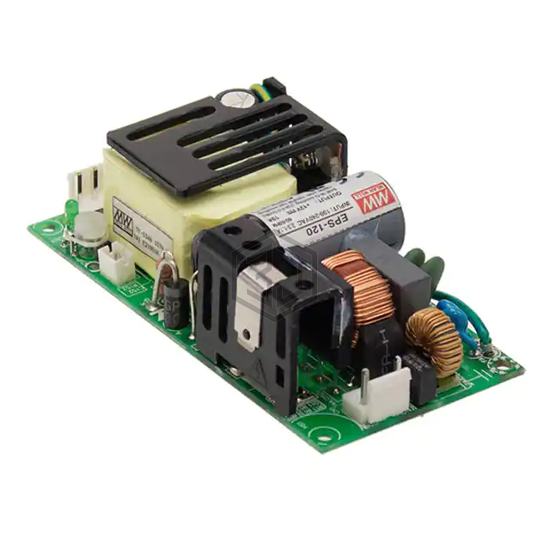

AC/DC CONVERTER 24V 84W
EPS-120-24 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 24V 84W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, 113 ~ 370 VDC, size / dimension 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC, 113 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 84W (120W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
