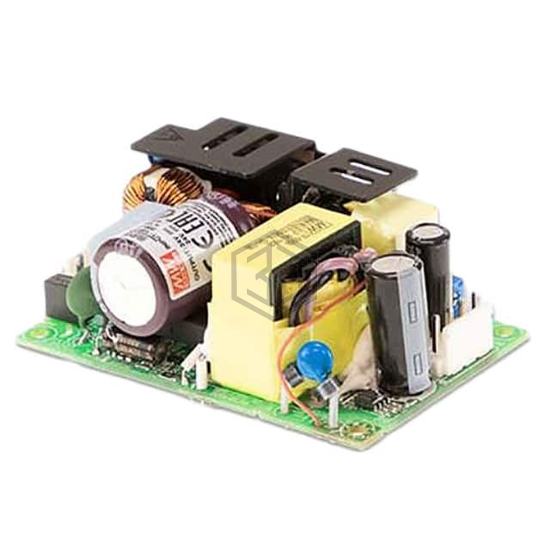

AC/DC CONVERTER 15V 114W
EPP-120S-15 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 15V 114W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 85°C (With Derating), voltage - input 80 ~ 264 VAC, 113 ~ 370 VDC, size / dimension 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC, 113 ~ 370 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 114W (143W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | -30°C ~ 85°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) |
| Approval Agency | CB, CE, cURus, EAC, TUV |
| Standard Number | - |
Submit your RFQ for EPP-120S-15 and get a quote within 24 hours.
