AC/DC CONVERTER 55.2V 121W

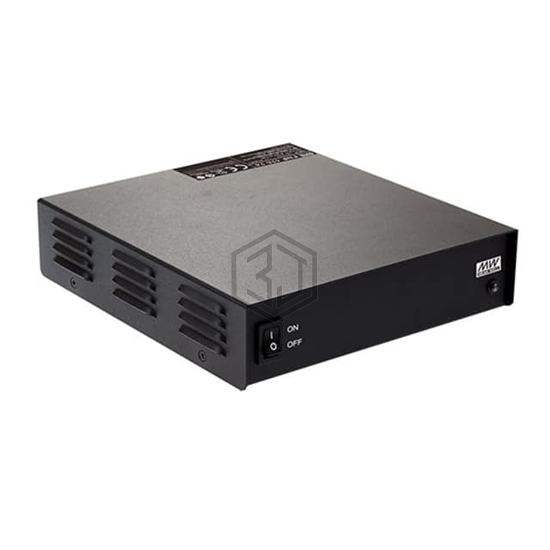

ENP-120-48 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 55.2V 121W. Key specifications: mounting type Benchtop, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 7.56" L x 7.01" W x 1.79" H (192.0mm x 178.0mm x 45.5mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 55.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 121W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 91.5% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Benchtop |
| Size / Dimension | 7.56" L x 7.01" W x 1.79" H (192.0mm x 178.0mm x 45.5mm) |
| Approval Agency | CB, CE, cULus |
| Standard Number | - |
Submit your RFQ for ENP-120-48 and get a quote within 24 hours.
