LED DRVR CC/CV AC/DC 18-36V

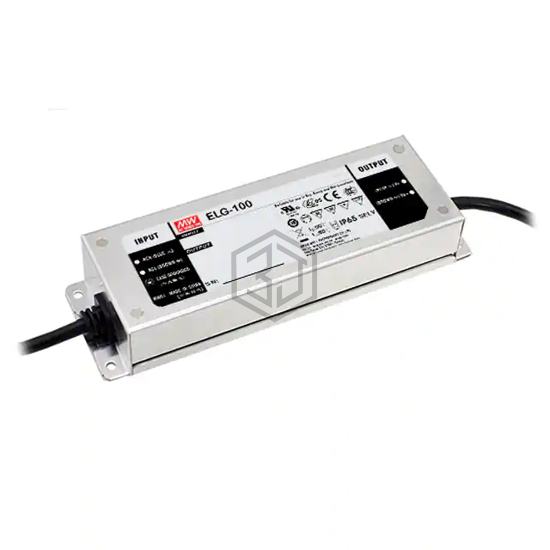

ELG-100-36A is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC/CV AC/DC 18-36V. Key specifications: operating temperature -40°C ~ 90°C, voltage - output 18 ~ 36V, current - output (max) 2.66A, size / dimension 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 2.66A |
| Power (Watts) | 96 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -40°C ~ 90°C |
| Efficiency | 89% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC, RCM |
| Standard Number | - |
Submit your RFQ for ELG-100-36A and get a quote within 24 hours.
