O/P +12V20A +12V15.4A

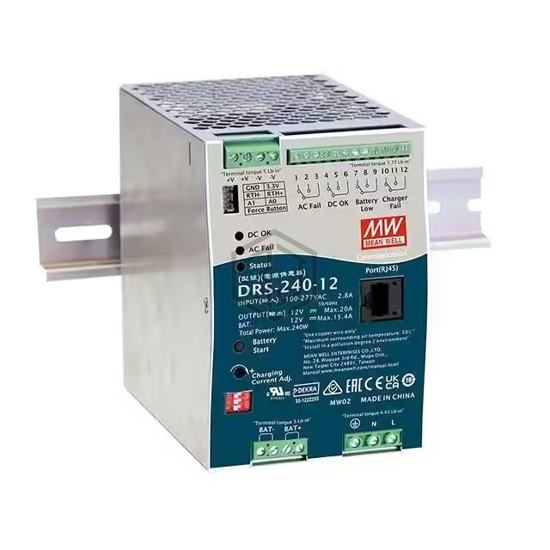

DRS-240-12 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. O/P +12V20A +12V15.4A. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm), number of outputs 1.
In Stock: 3,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 305 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 431V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, PMBus™ |
| Size / Dimension | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) |
| Approval Agency | CB, CE, cURus, EAC, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for DRS-240-12 and get a quote within 24 hours.
