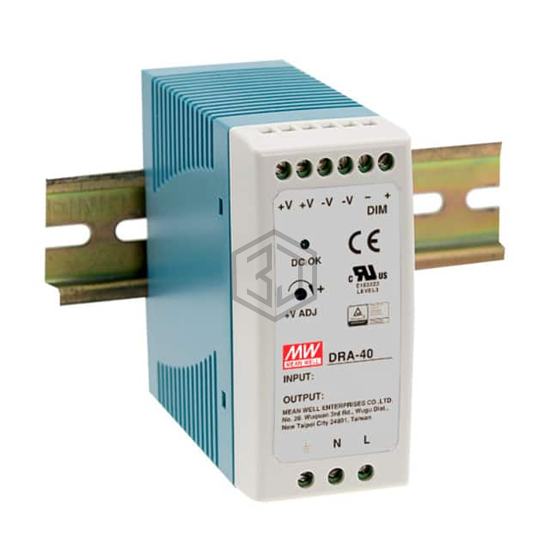

AC/DC CONVERTER 12V 40W
DRA-40-12 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 12V 40W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 3.34A, size / dimension 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm), number of outputs 1.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.34A |
| Power (Watts) | 40W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for DRA-40-12 and get a quote within 24 hours.
