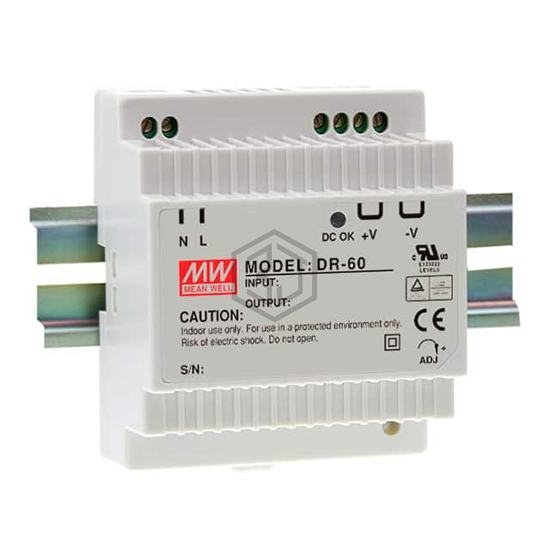

AC/DC CONVERTER 5V 33W
DR-60-5 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V 33W. Key specifications: operating temperature -20°C ~ 60°C (With Derating), current - output (max) 6.5A, size / dimension 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm), number of outputs 1.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | 124V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6.5A |
| Power (Watts) | 33W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 76% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for DR-60-5 and get a quote within 24 hours.
