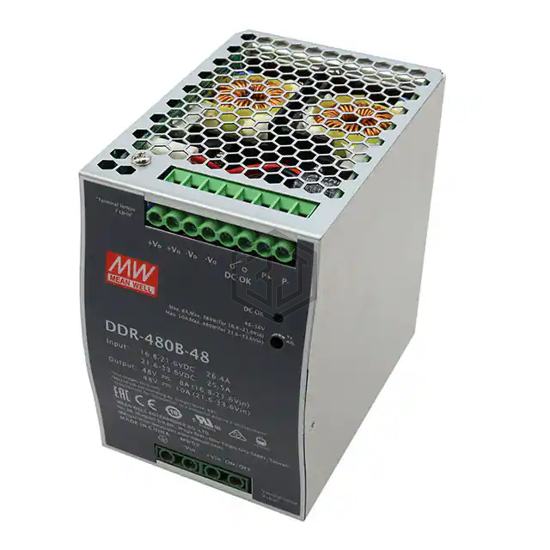

480W DIN RAIL TYPE DC/DC CONVERT
DDR-480B-48 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. 480W DIN RAIL TYPE DC/DC CONVERT. Key specifications: operating temperature -40°C ~ 80°C (With Derating), current - output (max) 10A, size / dimension 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm), number of outputs 1.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 16.8V |
| DC Voltage - Input (Max) | 33.6V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 90.5% |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) |
| Approval Agency | CB, CE, cURus, EAC |
| Standard Number | - |
Submit your RFQ for DDR-480B-48 and get a quote within 24 hours.
