240W DIN RAIL DC/DC CONVERTER O/

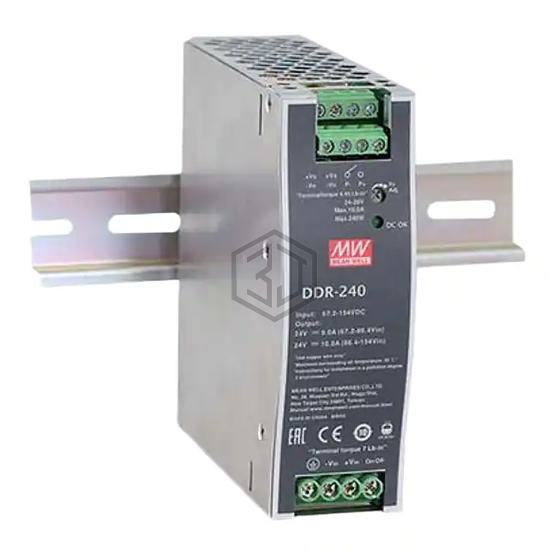

DDR-240B-24 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. 240W DIN RAIL DC/DC CONVERTER O/. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm), number of outputs 1.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 16.8V |
| DC Voltage - Input (Max) | 33.6V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Remote On/Off |
| Size / Dimension | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) |
| Approval Agency | CE, EAC |
| Standard Number | - |
